Elevate Your Macintosh SE with a Modern Aesthetic

You've completed Kai Robinson's SE Reloaded or Bolle's SE/30 Recreation, marveling at the sleek and modern look of your new logic board. But once installed in the chassis, that brilliance seems to fade into the background, overshadowed by the old, dull green analog board. Positioned front and center, the outdated analog board draws attention away from your masterpiece.
Isn't it time for an analog board that matches the elegance of the 2023 era?

Product Description

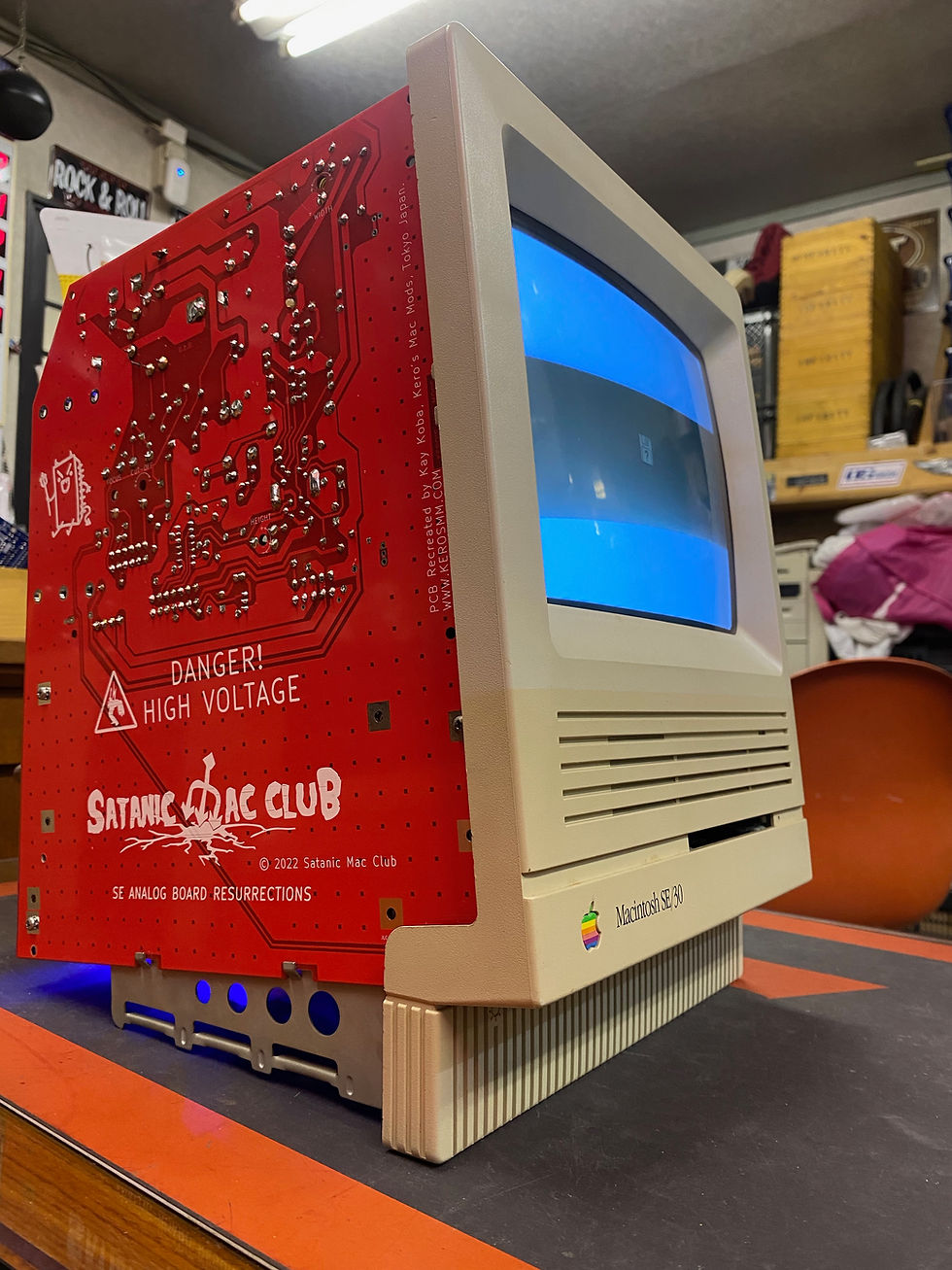

The SE Analog Board Resurrection is a 1:1 replacement for the original Macintosh SE Analog Board, designed with a thickness of 1.6mm for compatibility. While maintaining the original design, certain components have been updated with modern parts, and LEDs have been added in several locations for enhanced visual feedback.
To use, simply transfer the components from your original board to this replacement board. Once assembled, it will function immediately, offering a seamless restoration solution for your Macintosh SE.

Reproduced plastic rivets are available here.

BOM can be downloaded from here:
Analog Board BOM
Neck Board BOM

Important Notes Before Purchase

This listing is for Analog and Neck Bare PCBs only. Assembly and soldering instructions are not provided, as it is assumed that buyers have the necessary skills and understanding to handle high-voltage components. Please exercise caution when assembling.
Assembly is permitted only if you agree to the warnings and guidelines printed on the PCB. We are not responsible for any damage to other equipment, injuries, fatalities, or fires caused by improper handling or use.

Condition Disclaimer

Due to the nature of large PCBs, minor dents and scratches may be present. These imperfections originate from the PCB manufacturer and are within acceptable delivery standards. If you require a flawless aesthetic, we kindly ask you to refrain from purchasing.

Inquiries

For any questions regarding this analog board, feel free to contact us directly. Please avoid directing inquiries to unrelated YouTubers or manufacturers of other devices. Similarly, we cannot provide support for logic boards or products from other manufacturers.
Thank you for your understanding and cooperation!
